Specifications

Dimensions

Bed Width	83 inches
Bed Length	12 feet
Side Height	24 inches (typical for DT12 series)
Deck Height	~28–30 inches

Axles

Quantity	2
Rating	7,000 lb axles each (standard for DT122-type trailers)
Brakes	Electric brakes on both axles
Hubs	EZ-Lube style hubs

GVWR & Capacity

GVWR	14,000 lb (typical for 12' tandem dump trailers)
Payload Capacity	~9,500–10,000 lb depending on installed options

Tires & Wheels

Tire Size	ST235/80R16 (10-ply)
Wheel Type	8-lug wheels

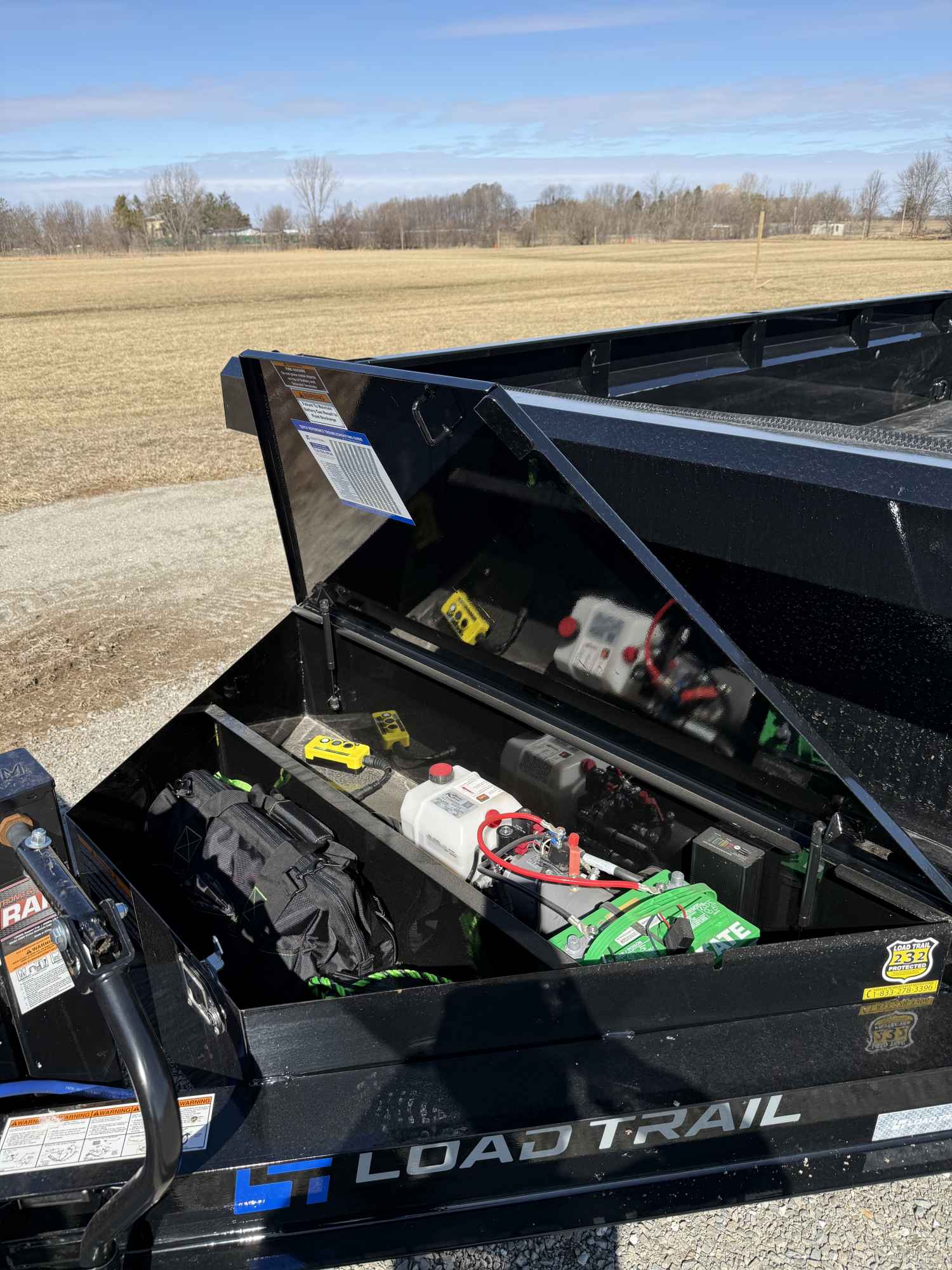

Hydraulics

Lift Type	Telescopic or scissor lift (manufacturer dependent; telescopic assumed)
Pump	12V hydraulic pump
Battery	Deep-cycle battery
Operation	Power-up / gravity-down

Frame & Construction

Frame	Heavy-duty I-beam frame
Floor	10-gauge steel
Sides	10-gauge steel
Finish	Powder-coated

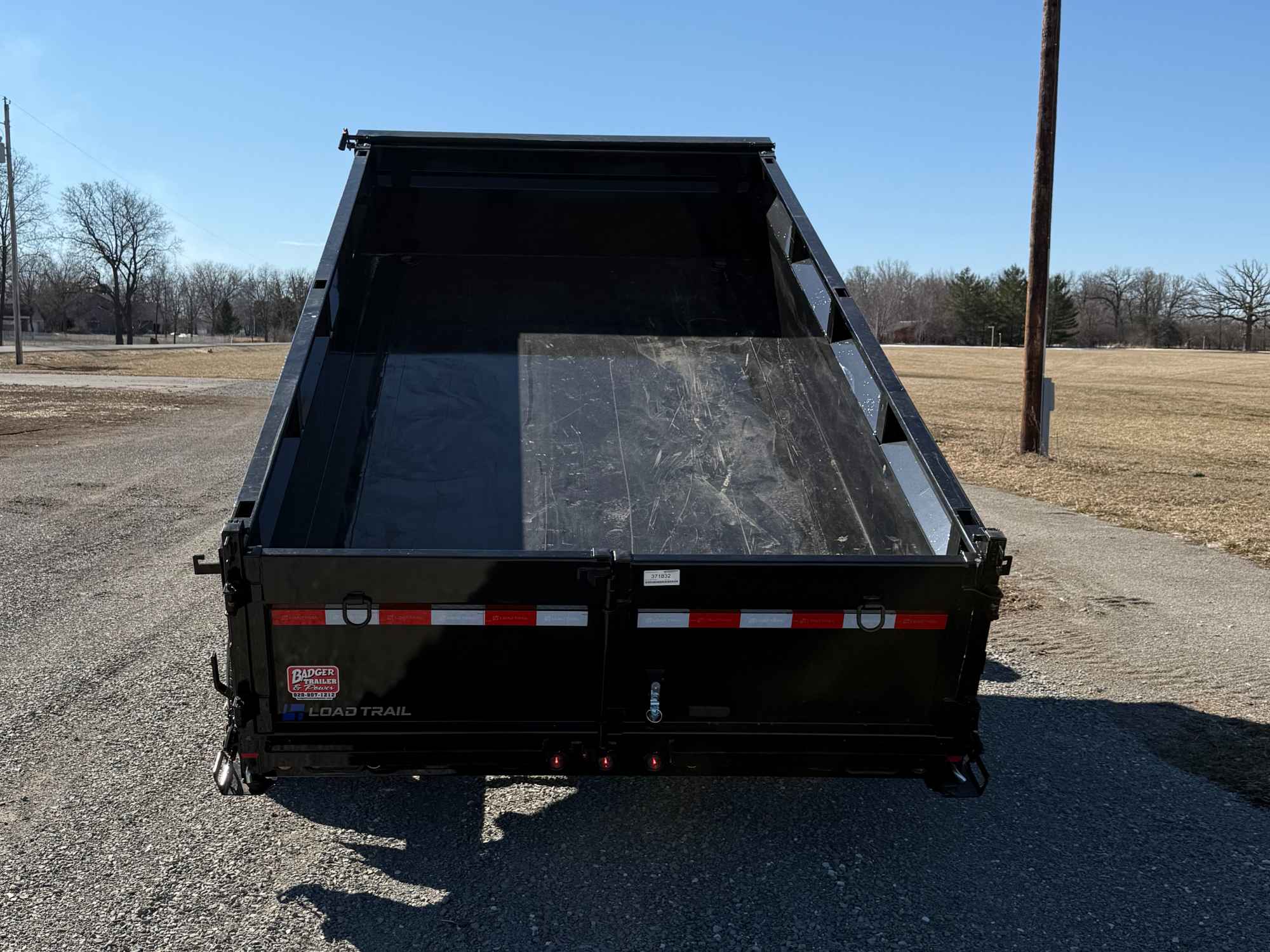

Gate & Loading Features

Gate	3-way spreader gate
Ramps	Slide-in rear ramps (typically 80")
D-Rings	Welded D-rings inside bed

Coupler & Jack

Coupler	Adjustable 2-5/16"
Jack	10k drop-leg jack (single)

Electrical System

Lighting	LED lighting package
Wiring	Sealed wiring harness

Standard Equipment

	Tarp kit (if equipped)
	Battery charger
	Breakaway system
	Safety chains

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
