Specifications

Dimensions

Bed Width	83 inches
Bed Length	14 feet
Side Height	24 inches
Deck Height	~28–30 inches

Axles

Quantity	2
Rating	7,000 lb Dexter axles each
Brakes	Electric brakes on both axles
Hubs	EZ-Lube hubs

GVWR & Capacity

GVWR	14,000 lb
Payload Capacity	10,000–10,500 lb (depending on installed options)

Tires & Wheels

Tire Size	ST235/80R16 (10-ply)
Wheel Type	8-lug wheels

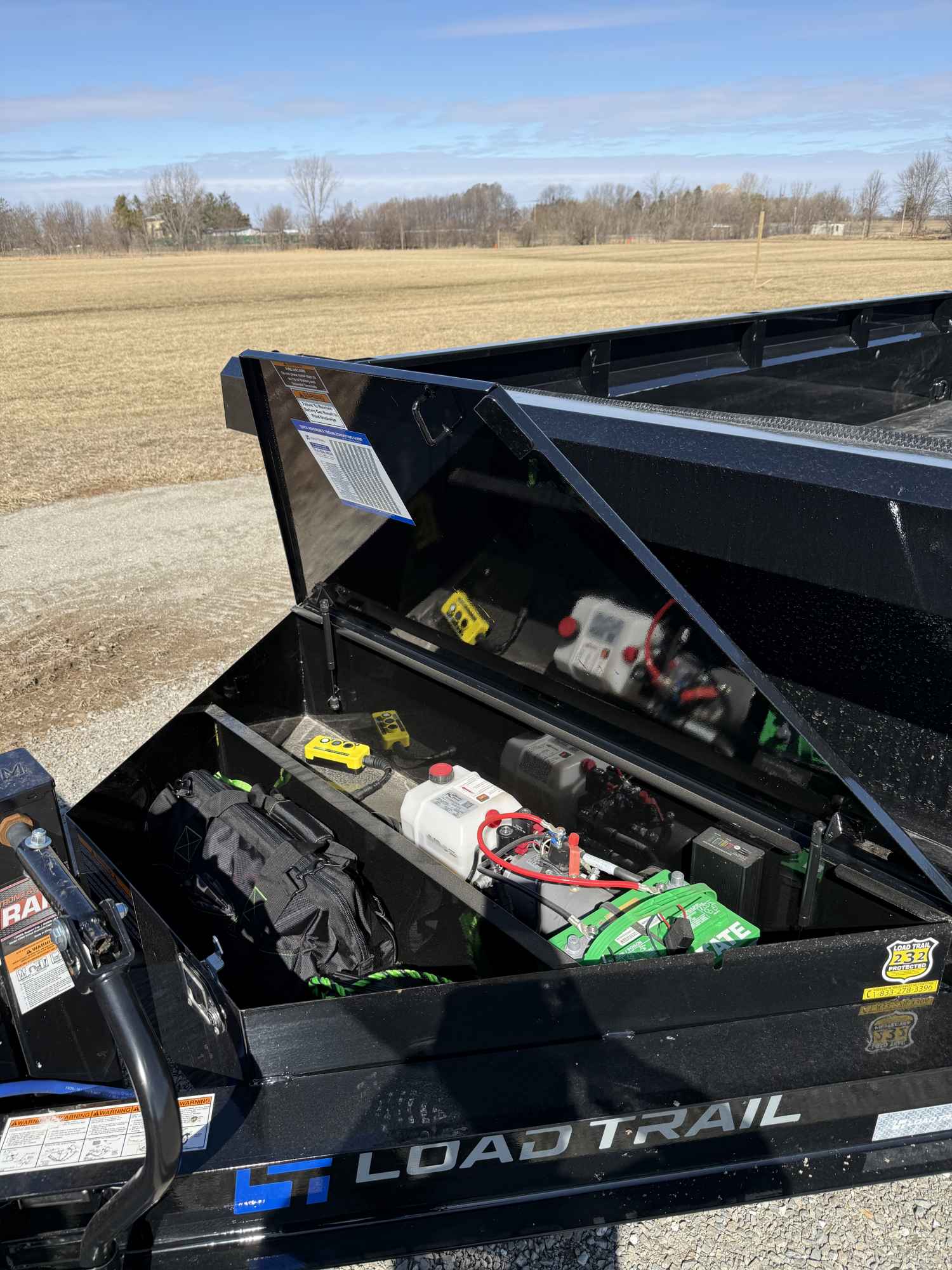

Hydraulics

Lift Type	elescopic front lift cylinder
Pump	12V KTI hydraulic pump
Battery	Interstate deep-cycle battery
Operation	Power-up / gravity-down

Frame & Construction

Frame	8" I-beam
Floor	10-gauge steel
Sides	10-gauge steel
Finish	Powder-coated

Gate & Loading Features

Gate	3-way spreader gate
Ramps	80" slide-in rear ramps
D-Rings	6 welded D-rings inside bed

Coupler & Jack

Coupler	Adjustable 2-5/16"
Jack	10k drop-leg jack (single)

Electrical System

Lighting	LED lighting package
Wiring	Cold-weather sealed wiring harness

Standard Equipment

	Tarp kit
	Battery charger
	Breakaway system
	Safety chains

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
